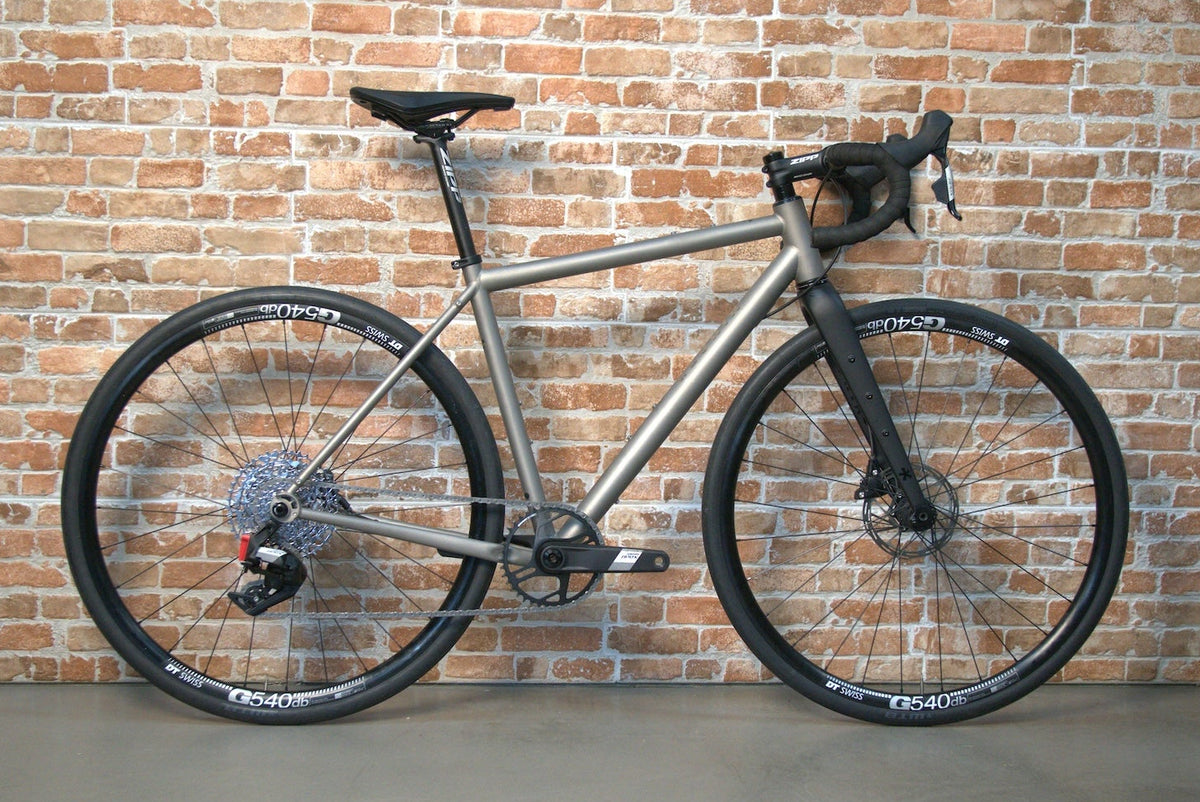

Ex Display - All Road Sram Apex - 52

£2,099.00
£2,099.00
£0.00

(International orders exclude UK VAT. Customers are responsible for their local taxes.)

International orders exclude UK VAT. Customers are responsible for their local taxes.
Specifications Built with carefully selected components for performance, durability and everyday versatility. 01...

ROAD SIZE GUIDE



Rider Height Suggested Frame Size
5′2″ to 5′4″ (157cm-163cm) 50
5′3″ to 5′7″ (160cm-170cm)  52
5′6″ to 5′10″ (168cm-178cm) 54
5′9″ to 6′2″ (175cm- 183cm) 56
6′1″ to 6′4″ (183cm- 190cm) 58
6′3″ to 6′7″ (188cm- 200cm) 60



Click here to see our size recoomendaion. If you have any questions about sizing or are unsure which size to choose, just email us at shop@gloriacycling.com with the measurements below, and we’ll send you a CAD drawing with your recommended size.

Bike Details

Specifications

Built with carefully selected components for performance, durability and everyday versatility.

01 / Frame & Fork

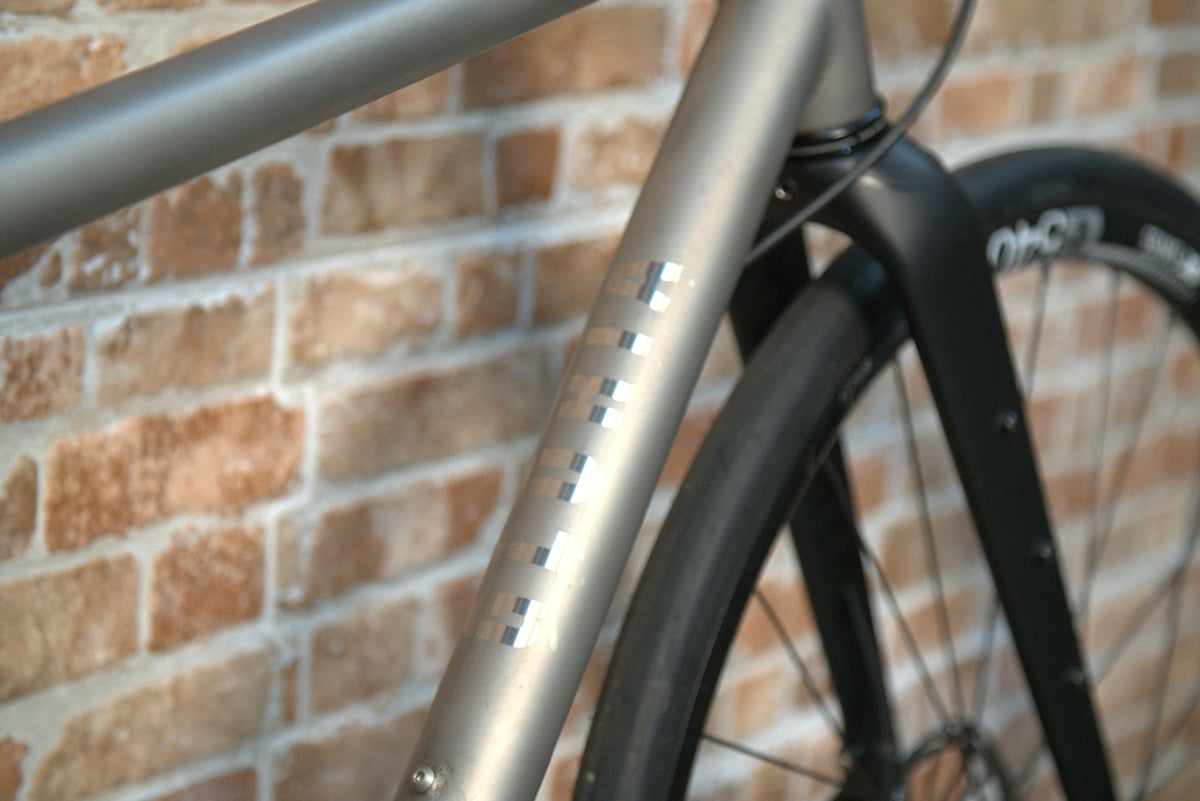

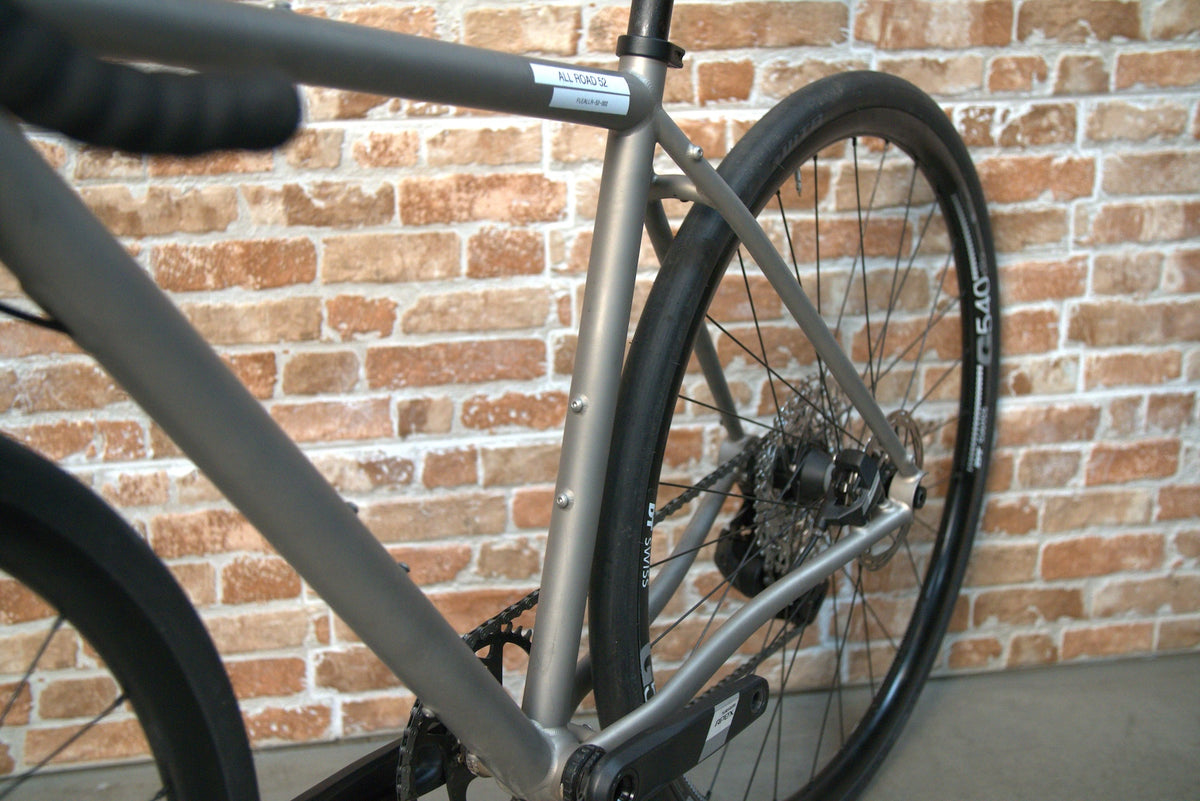

Frame Gloria Titanium All Road — Sandblasted
Fork Gloria Carbon — Cage mounts, External Routing
Headset ZS44 / EC44
Seat Clamp Gloria Forged Alloy Bolt Up

02 / Drivetrain

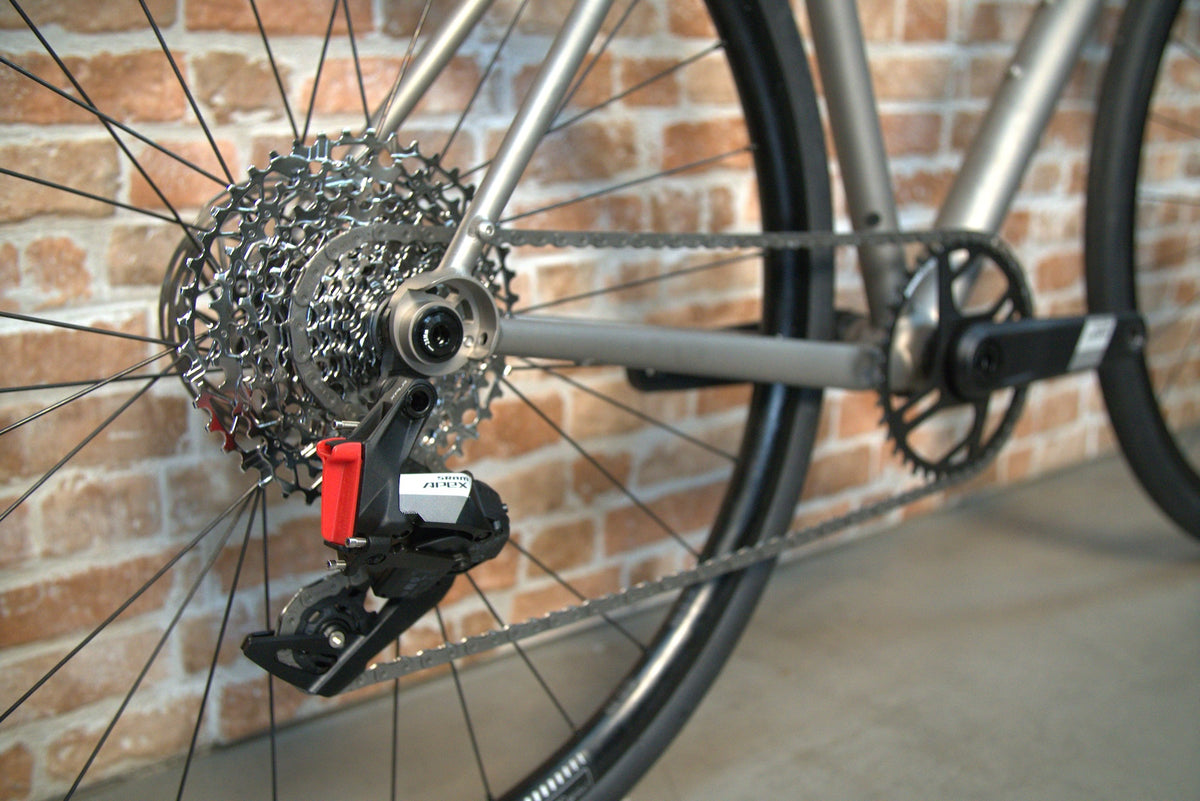

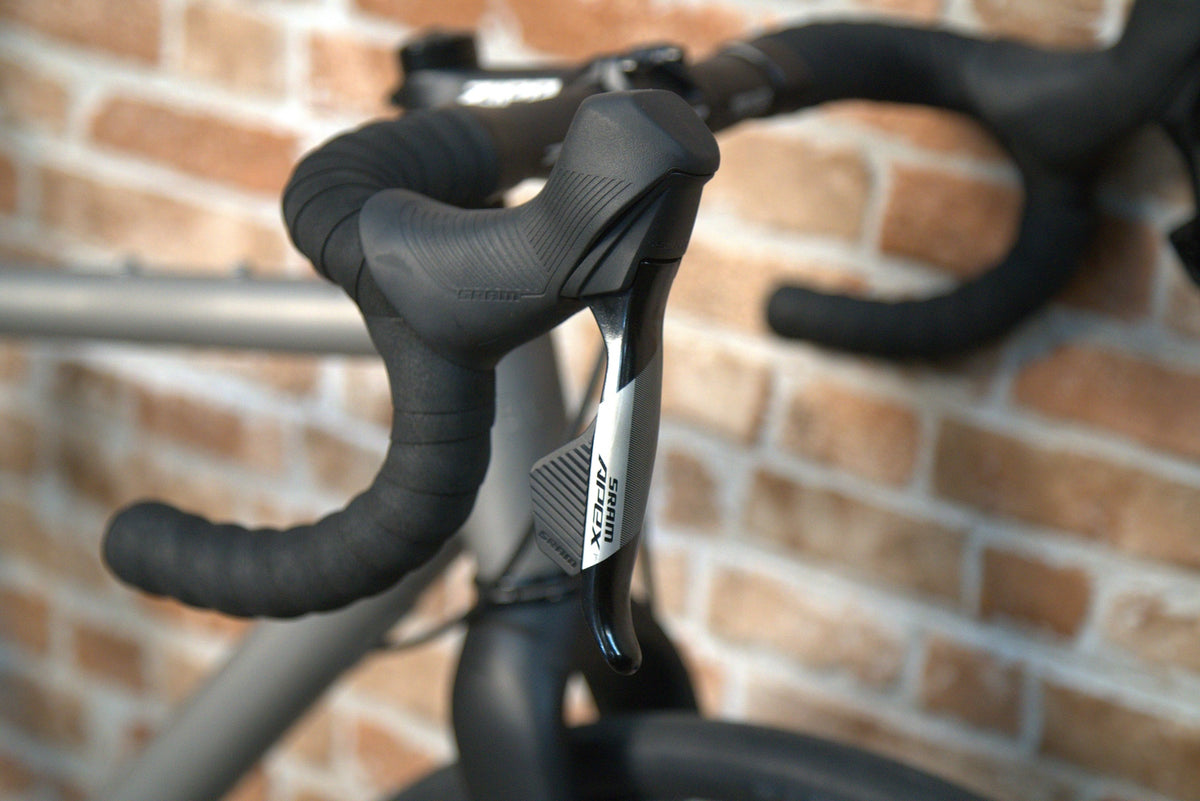

Groupset Sram Apex 1x12
Front & Rear Mechs None
Crankset Sram Apex
Cassette 11–34T
Chain Sram
Bottom Bracket BSA

03 / Wheels & Braking

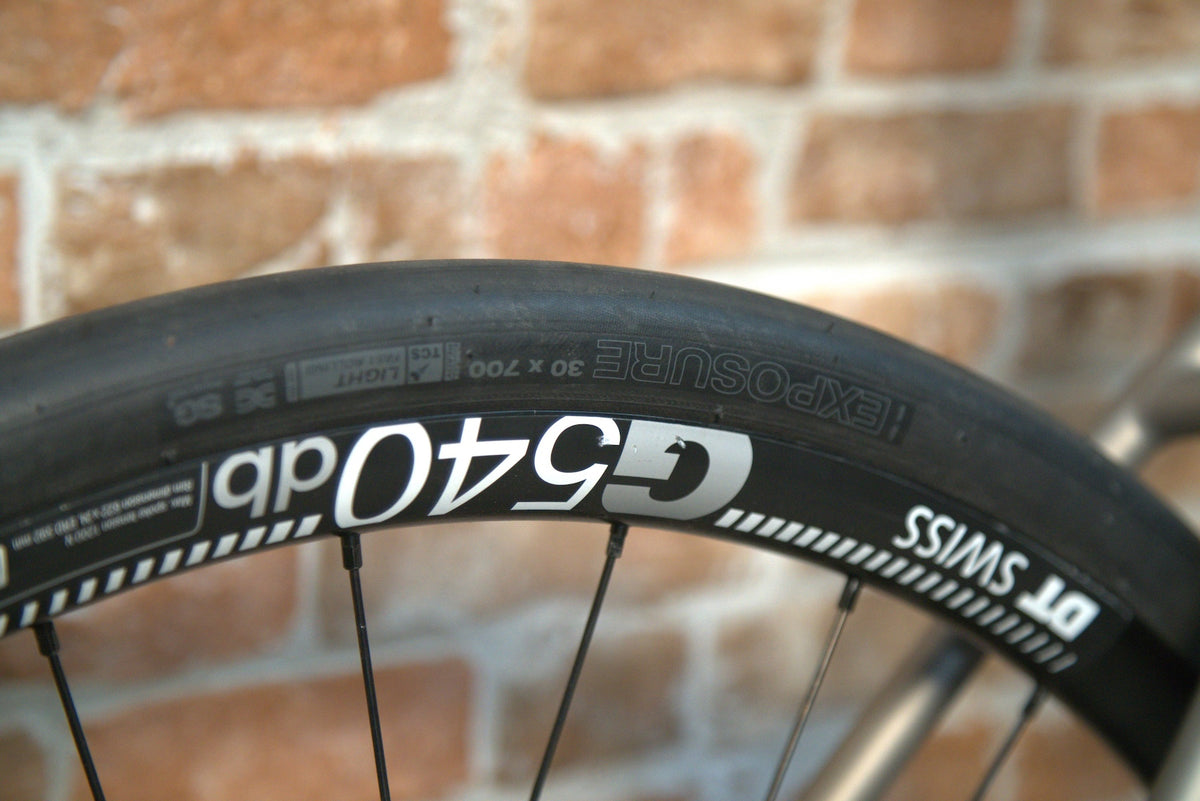

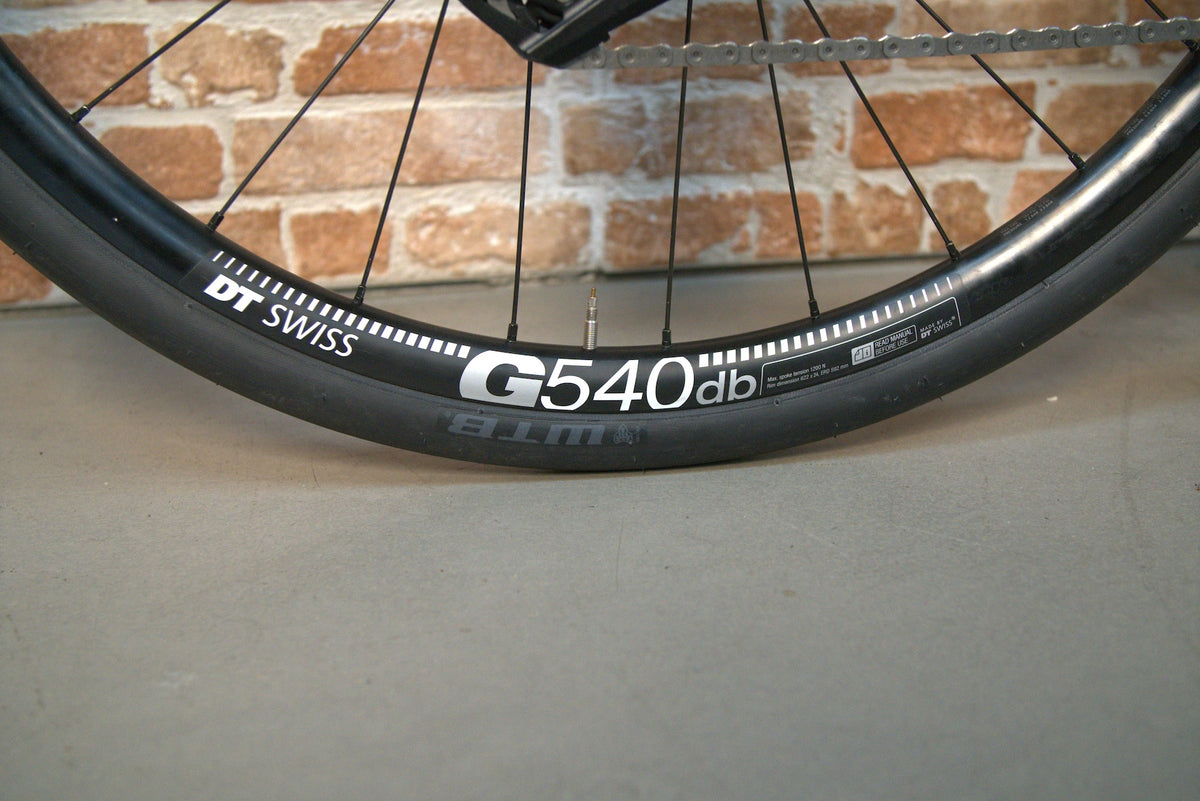

Wheelset DT Swiss G1800
Tyres Vittoria Rubino 32c

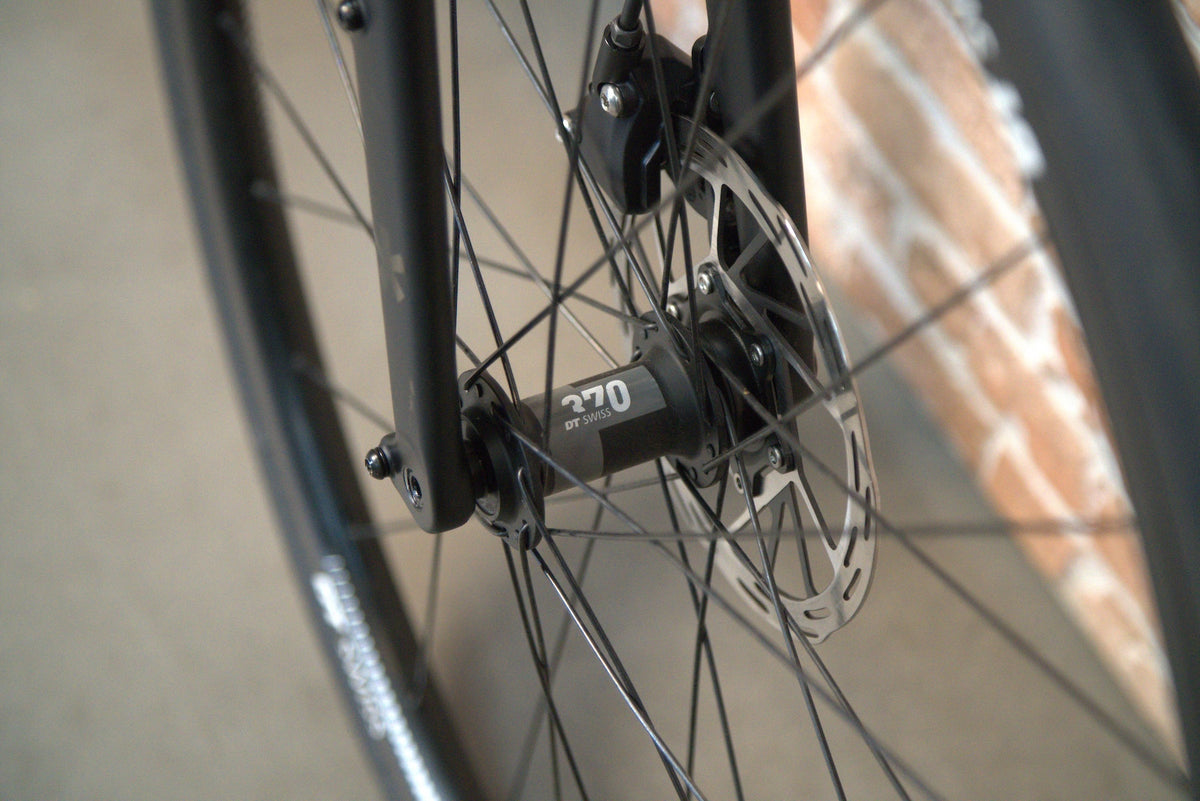

Brake Rotors 160 mm Front / 160 mm Rear
Mudguards  SKS Mudguard Set — Not included

04 / Finishing Kit

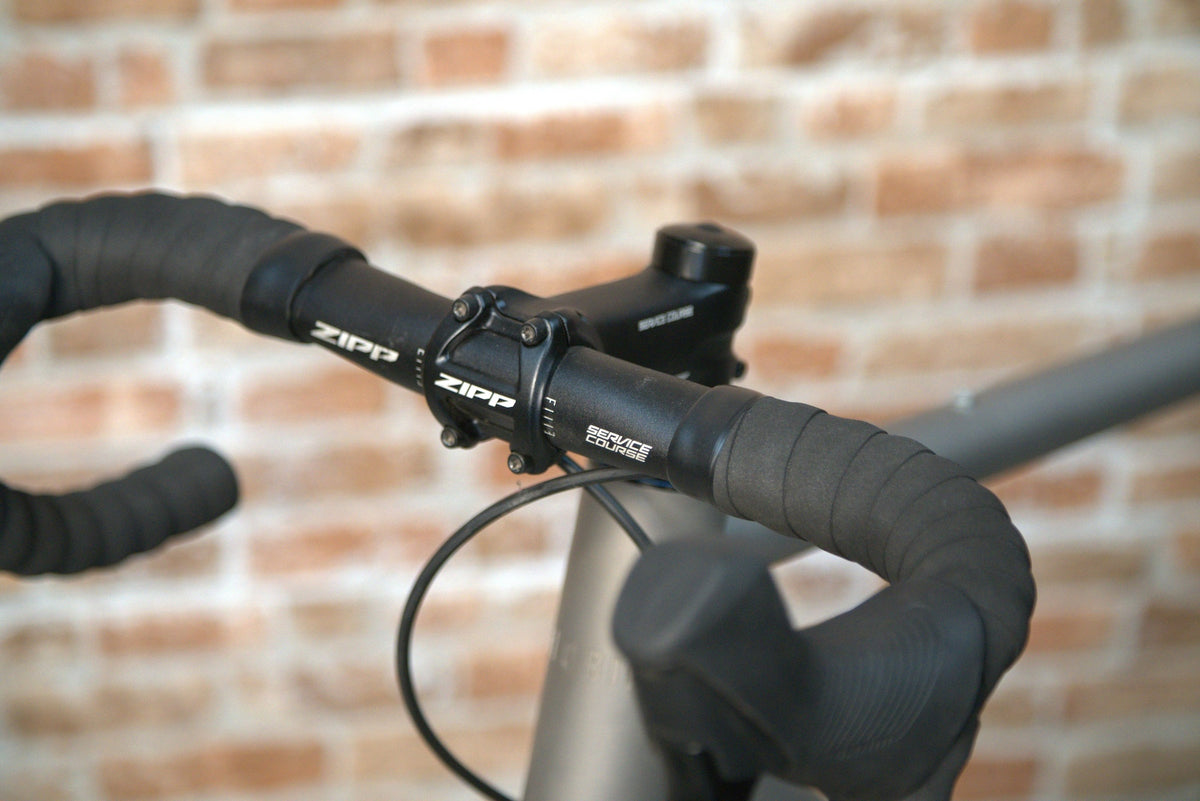

Handlebar Zipp Service Course
Stem Zipp Service Course
Seatpost Zipp Service Course
Saddle Gloria
Bar Tape / Grips BBB
Frame Geometry

Compare the geometry across all six frame sizes.

Measurement 50 52 54 56 58 60
Stack 543.1 562 580.9 600 619 636.6
Reach 358.1 366.5 374 382.3 390 399.5
Head Tube Angle 70° 71° 72° 72.5° 72.5° 72.5°
Seat Tube Angle 73.5° 73.5° 73.5° 73.5° 73.5° 73.5°
Effective Top Tube 519 533 547 560 574 588
Seat Tube C-T 456 484 518 544 558 588
Head Tube 110 126 142 160 180 198
Chainstay 425 425 425 425 425 425
Wheelbase 998 1003 1008 1017 1031 1046.5
Down Tube Length 618.1 628.6 639 647.3 656 665.7
Fork Length 395 395 395 395 395 395

Dimensions in millimetres unless otherwise stated. Geometry and components may be subject to change.

Quantity

Ask about this bike
