Gloria All Gravel - SRAM Rival AXS (electronic shifting) - DT Swiss Wheelset
- Regular price
- £3,499.00
- Sale price
- £3,499.00
- Regular price
(For International Orders UK VAT Is Already Excluded And Local Taxes Will Be Added At Checkout.)
Geometry
Geometry
Size Guide
Find your size
| Rider Height | Suggested Frame Size |
| 5′0″ to 5′4″ (152cm-162cm) | 49 |
| 5′3″ to 5′7″ (160cm-170cm) | 52 |
| 5′6″ to 5′10″ (168cm-178cm) | 54 |
| 5′9″ to 6′2″ (175cm- 188cm) | 56 |
| 6′1″ to 6′4″ (184cm- 193cm) | 58 |
| 6′3″ to 6′7″ (190cm- 200cm) | 60 |
Size Guide
Find your size
| Rider Height | Suggested Frame Size |
| 5′0″ to 5′4″ (152cm-162cm) | 49 |
| 5′3″ to 5′7″ (160cm-170cm) | 52 |
| 5′6″ to 5′10″ (168cm-178cm) | 54 |
| 5′9″ to 6′2″ (175cm- 188cm) | 56 |
| 6′1″ to 6′4″ (184cm- 193cm) | 58 |
| 6′3″ to 6′7″ (190cm- 200cm) | 60 |
Payment options
You can pay with Klarna Flexible Payments, Cycle Scheme, Paypal, Credit Cards or Bank Deposit.

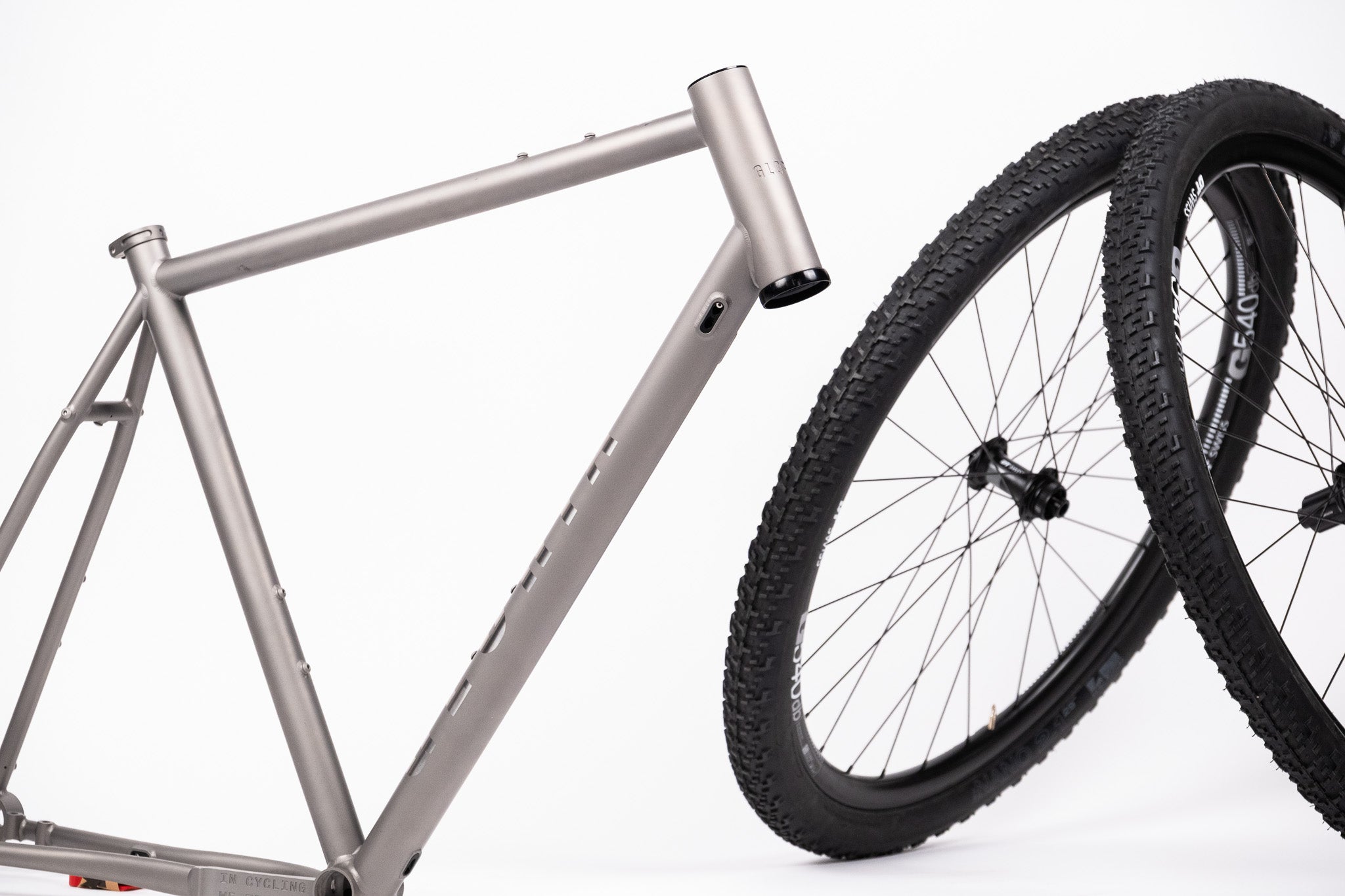

All Gravel Frame details
- Headset Included: 44mm, ZS44/28.6 upper, EC44/40 lower (Cane Creek 40)
- UDH Hanger included
- Frame tubing: Titanium Grade 3Al - 2.5V Aerospace Grade 9 Titanium
- Butted tubes
- Thru-axles front & rear and all appropriate cable guides included
- Lifetime Frame Warranty
- Frameset weight: ~ 2.5 kg
- Frame weight: ~2 kg
- Frame finish - Sandblasted (Standard), Brushed or Anodised
- Recommended Fork: Gloria 1.5″ – 1.1/8″ tapered steerer full carbon disc fork, mudguard/triple cage mounts, Dynamo routing.
- Cable routing: Internal or External cable routing or even fully integrated.
- Axles 12mm x 100mm front and 12mm x 142mm The Robert Axle Project bolt thru
- Bottom Bracket: Standard BSA 68mm bottom bracket, ISO threaded
- Mudguards and rack mounts compatible
- Brake mount: Flat mount 140mm or 160mm rotors
- Seat Post diameter: 31.6mm
- Seat Post Dropper compatible
- Gloria Alloy seatpost collar 34.9mm included
- Chainring clearance: Up to 48/31 2x or 46t 1x
- Frame Tyre clearance: 29x2.1, optimised for 700x50c
- Front mech clamp: 34.9mm

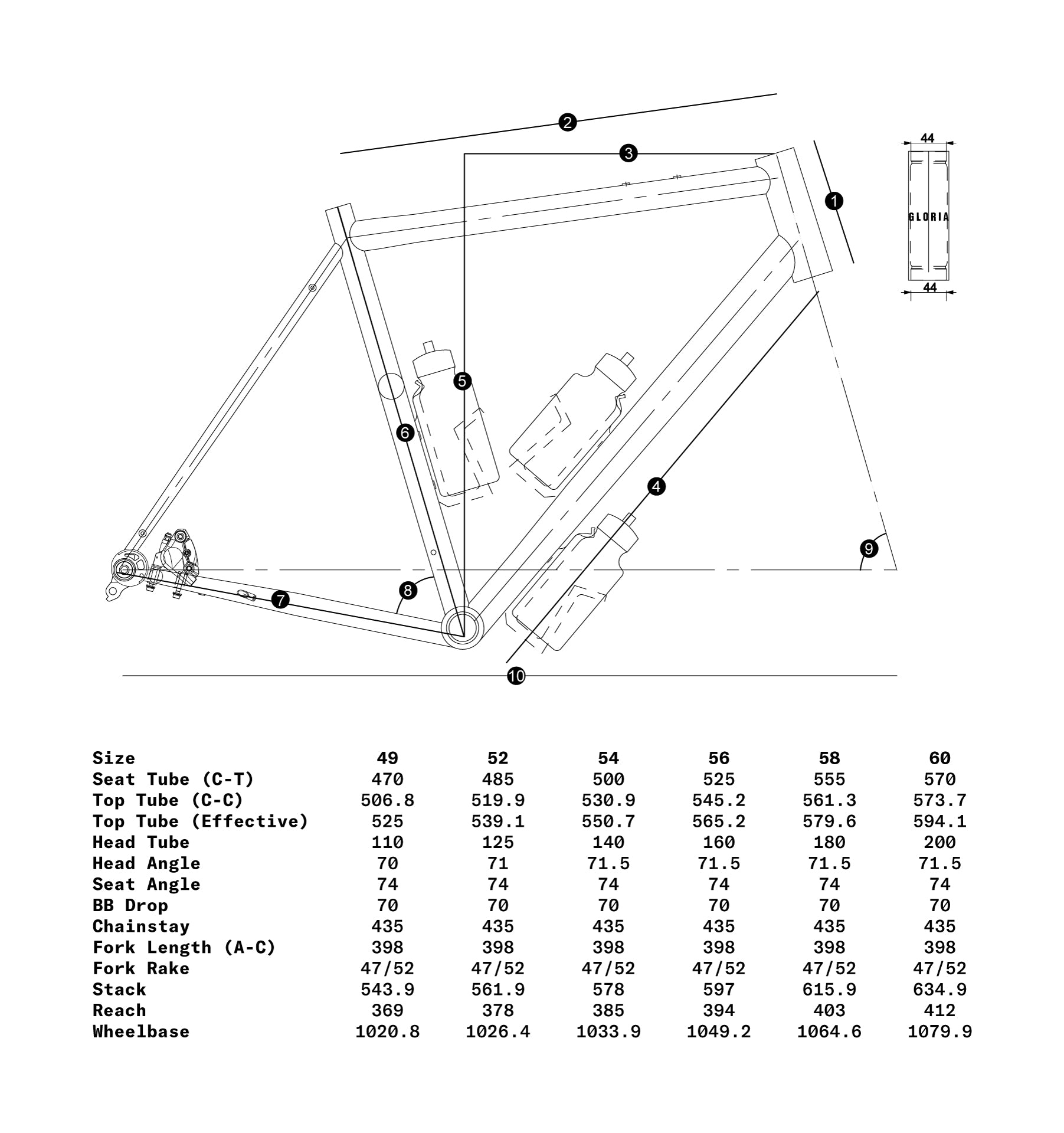

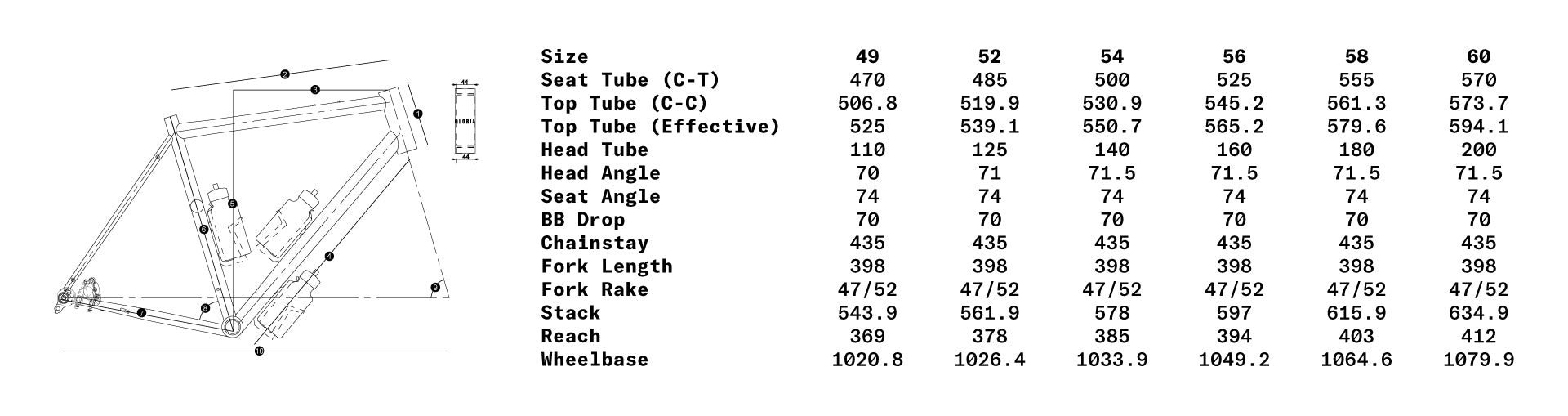

Geometry, Weight & Specs
About the All-Gravel
Introducing the Gloria All-Gravel, Inspired and Built for the UK gravel, bridleways, and everything in between. The All-Gravel is a titanium frameset made for riders who want comfort, confidence and capability whether you're racing an ultra or just escaping daily life for a few hours to explore locally.
With clearance for up to 29x2.1” tyres, it smooths out the roughest terrain. The frameset includes a carbon fork that comes with triple cage mounts, mudguard tabs and dynamo routing ready to be fully loaded with everything you need on your next adventure.
Crucially we have included frame rack and fender mounts, possibility for internal cable routing and also seatpost dropper compatibility, because why limit your fun? Built around a BSA threaded bottom bracket, UDH hanger, and a Cane Creek 40 headset it’s simple to build and a dream to maintain.

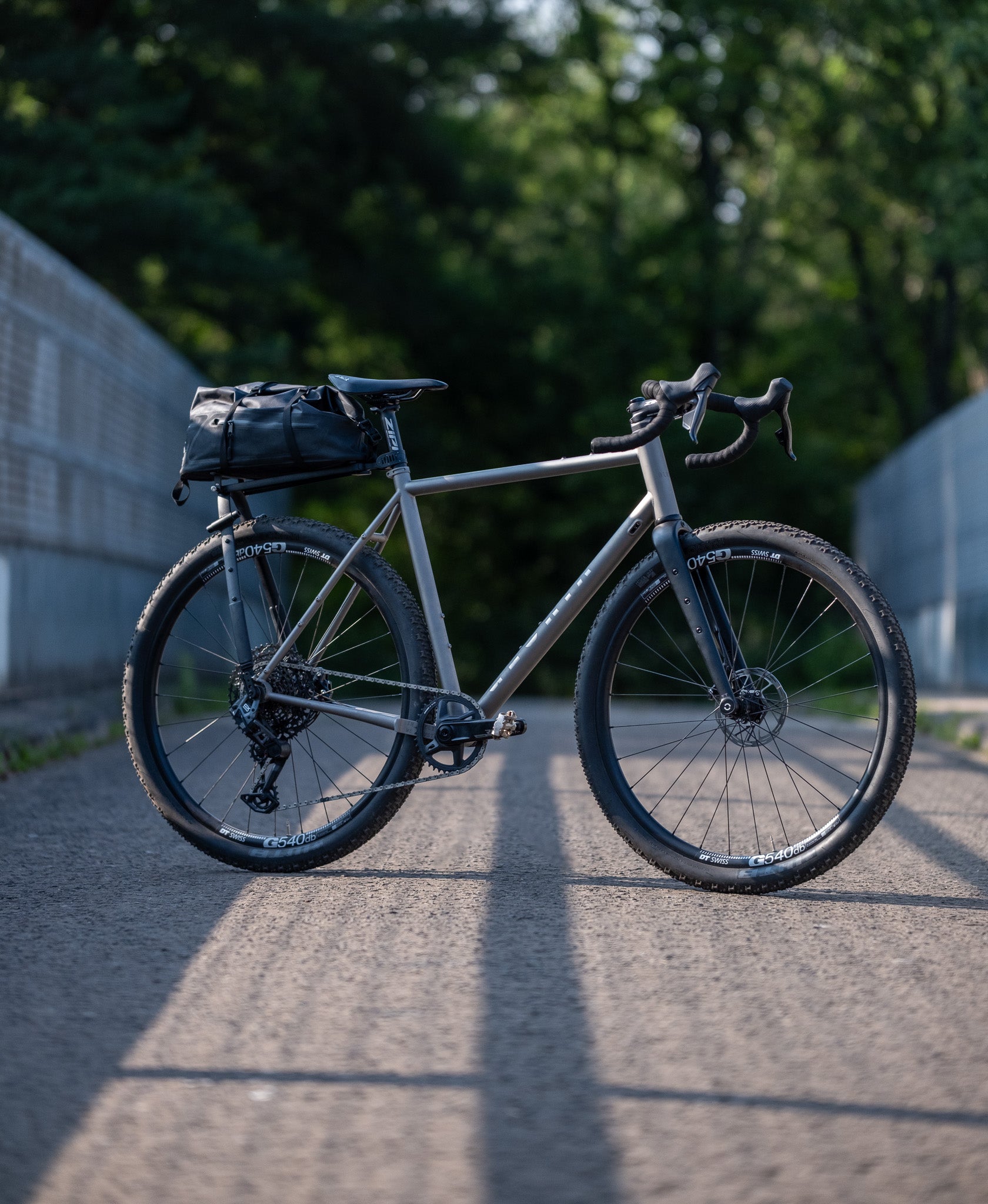

From day rides to far flung bike packing missions, the Gloria All-Gravel is your go anywhere machine!
NOW available for Pre Order
To reserve one of the limited first batch of Gloria All Gravel Frames for delivery in September, please place your All-Gravel build deposit!
Pre Order Pricing:
Sandblasted Frameset with Non Integrated Fork £1499

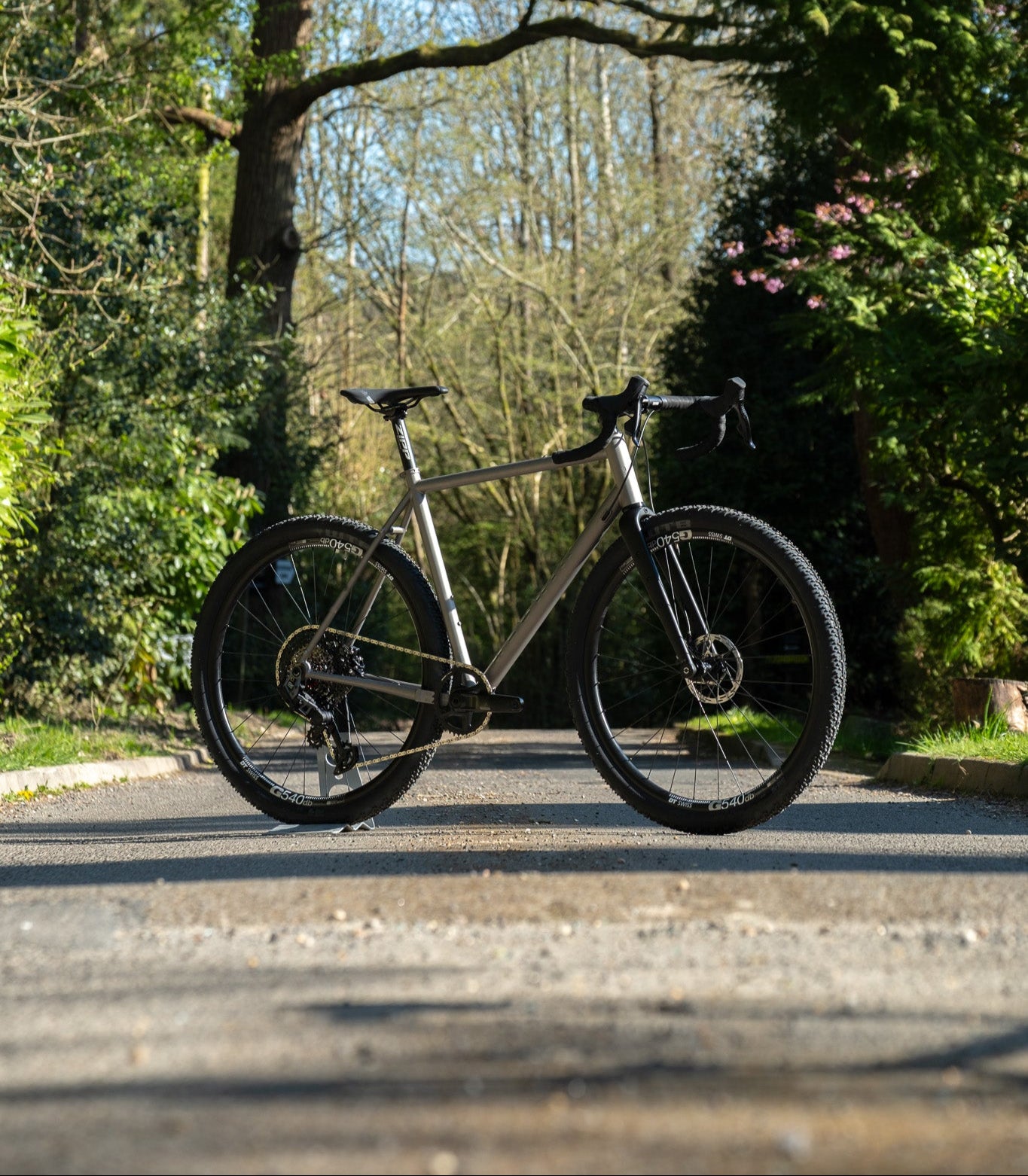

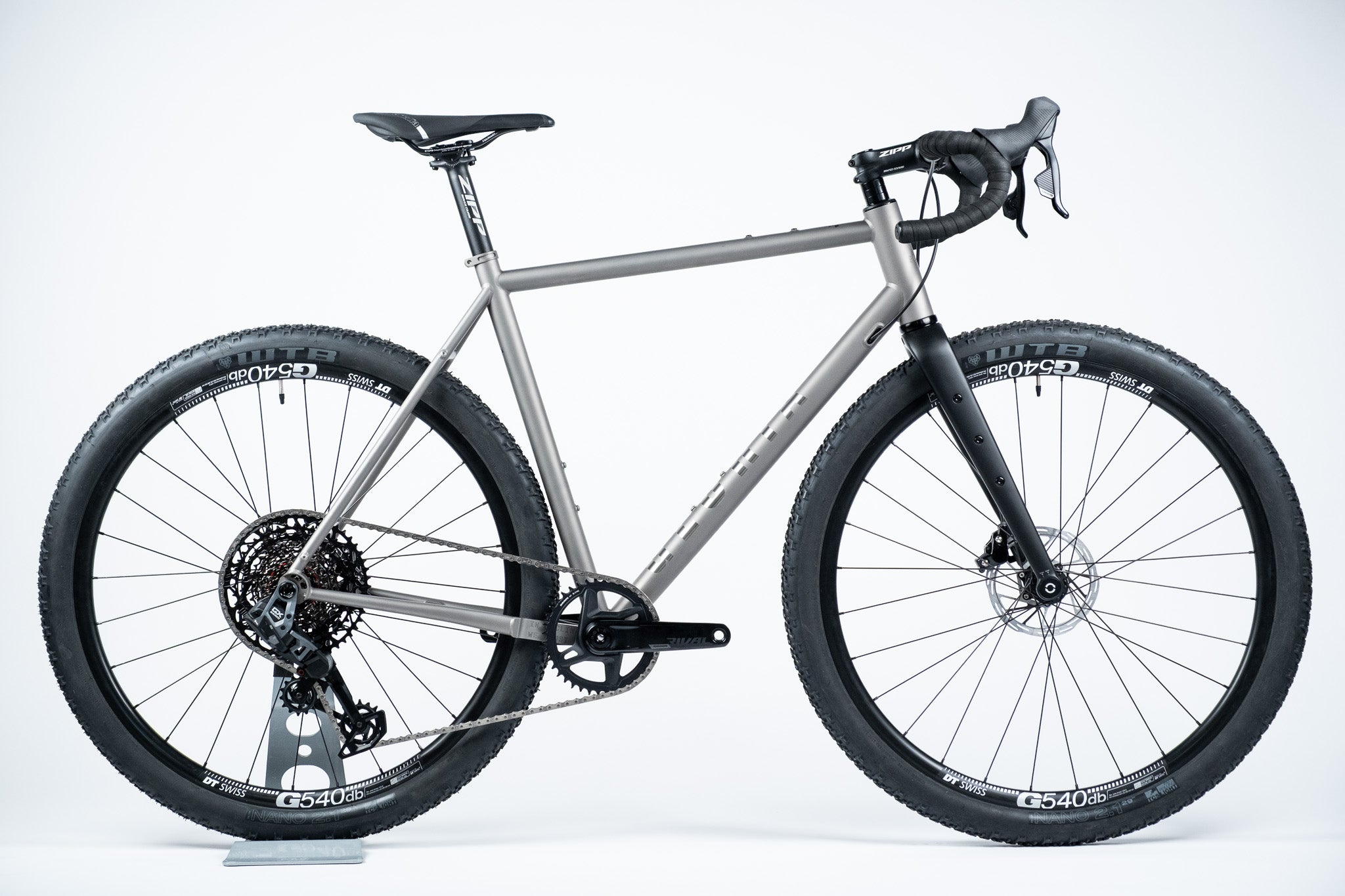

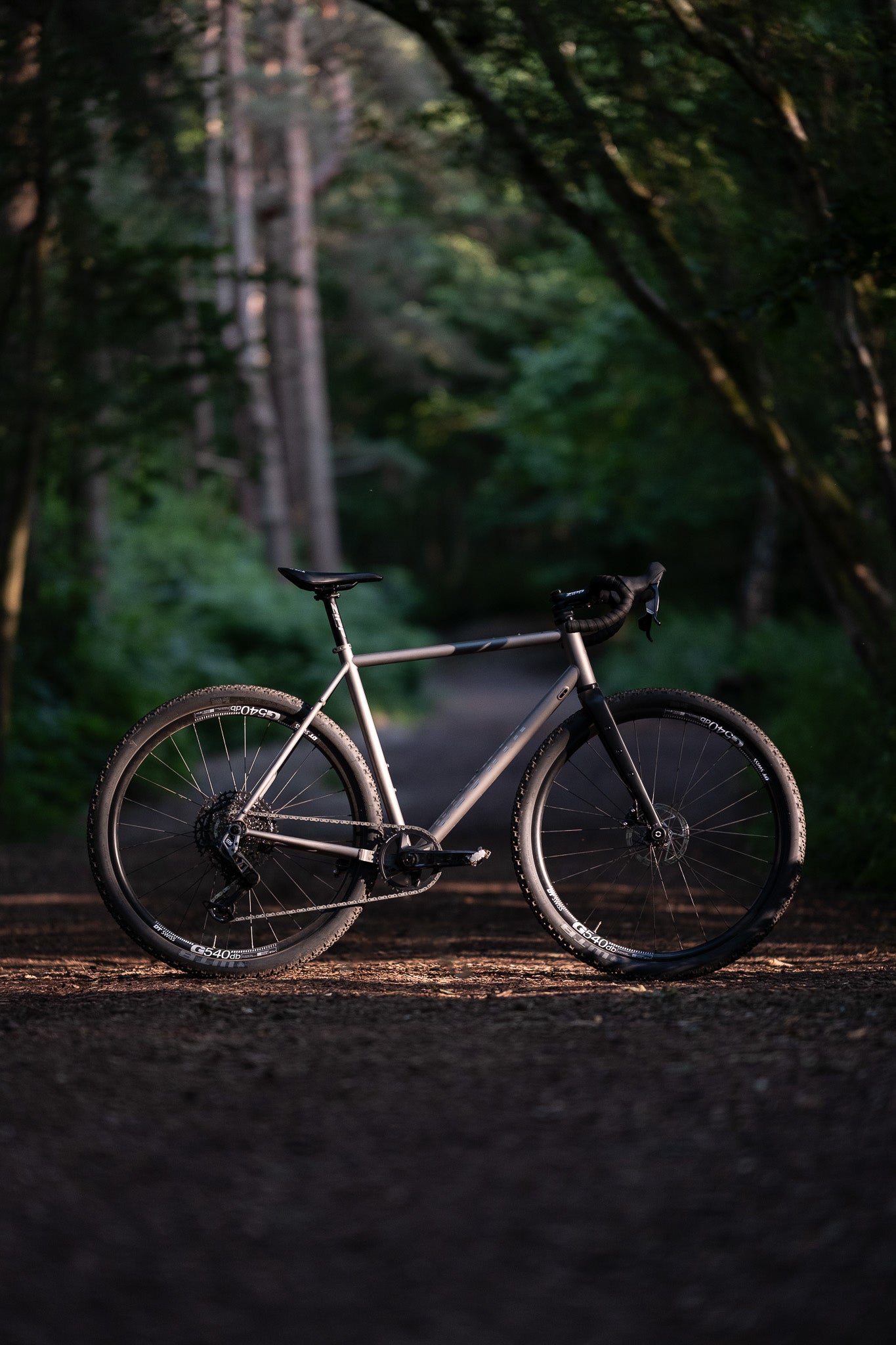

Pictured Sandblasted Full Build with SRAM Rival (Electronic Shifting) & DT Swiss Alloy Wheels £3499
Frequently asked questions
IS THE GLORIA ALL-GRAVEL AVAILABLE AS A FRAME ONLY?
All Gloria frames are available as a frame only, frameset or complete bike. If you have a special requirement please give us a call on +44 (0) 2037583227
GROUPSET COMPATIBILITY?
The Gloria All-Gravel is designed to accommodate various groupsets as follows: Wireless 2x , mechanical 1x internally, as well as fully integrated through the headtube. Electronic groupsets are internally routed as well as fully integrated. The max chain ring size is 48t.
CAN I BUY THROUGH CYCLE TO WORK SCHEMES?
You can purchase it from our website or visit our shop in Crawley where you will enjoy a premium customer experience. Ride to work schemes available include Cycle scheme,Bike2work, Cycle solutions,
Evans, GCI and Cycle2Work
WHAT WARRANTY YOU OFFER ON THE FRAMES?
We offer life-time warranty on our frames. Subject to our following terms and conditions.
DOES THE GLORIA ALL-Gravel HAVE MUDGUARDS MOUNTS?
Yes, it does on the fork and the frame itself for the rear mudguard.
CAN THE GLORIA ALL-GRAVEL BE FULLY INTEGRATED?
Yes, we have designed the All Gravel so that you can build up yours how you desire!
WHAT FORK IS AVAILABLE?

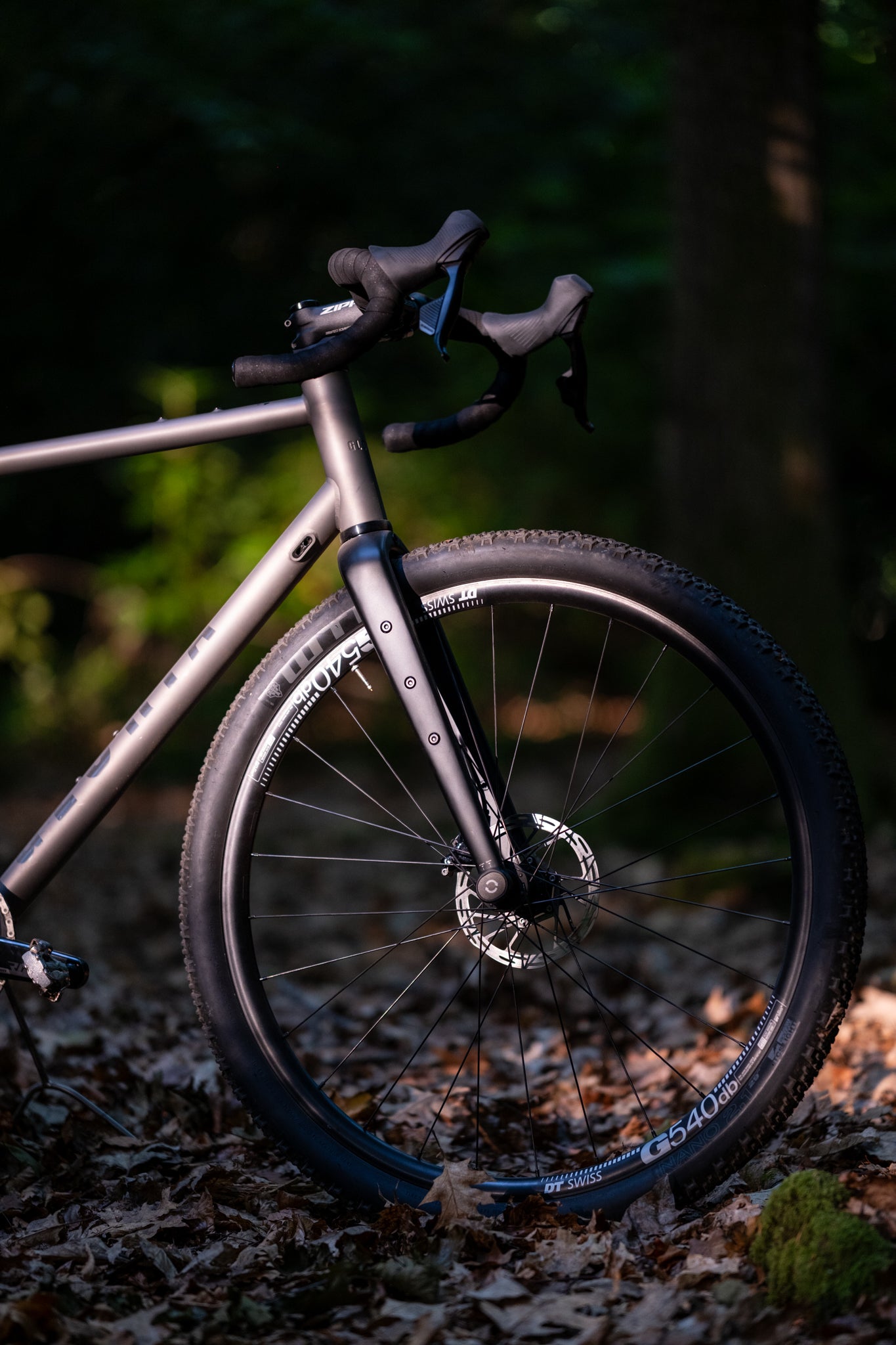

We have designed a specific fork, with cage mounts, mudguard mounts, dynamo routing and 2.1'/50mm clearance. Also, we have a fully integrated fork version. Please let us know your preference and we are happy to provide the right product for your needs.
CAN I ORDER A DIFFERENT FRAME FINISH?
Yes, you can. There is an additional fee of £150 for our brushed and anodised frame finish options. If you would like to know more about the finishes please ask us :)
