Finding Your Perfect Ride with Gloria: Understanding Bike Geometry and Fit
Why Geometry and Bike Fit Matters
At Gloria Cycling, we believe that a well-fitted bike not only improves your riding experience but also prevents discomfort and injuries. When it comes to choosing the right bike, geometry and fit play a crucial role in comfort, efficiency, and performance. In this blog we’ll break down some fundamental measurements that help us determine the best fit for you - hopefully without getting too technical!
Bike Geometry vs. Bike Fit
Before diving into specific measurements, it’s important to distinguish between bike geometry and bike fit:
- Bike Geometry refers to the actual design and angles of the frame—things like the top tube length, head tube angle, and chainstay length. These influence how the bike handles, climbs, and descends.
- Bike Fit is how the bike interacts with your body. It includes adjustments like saddle height, reach, and stem length to make sure you’re in a comfortable and efficient position.
A bike with great geometry won’t ride well if it’s not properly fitted to you. That’s why understanding a few key measurements is essential!
Some Key Measurments to help with the bike fit
When helping customers choose the right size, we look at several key measurements. These help us make adjustments to ensure your position is both comfortable and efficient.
1. Saddle Height: Bottom Bracket to Saddle Tip
- Why it matters: The height of your saddle affects pedaling efficiency and knee comfort. Too low, and you lose power; too high, and you risk discomfort or injury.
- How we measure it: From the center of the bottom bracket (BB) to the tip of the saddle.
2. Saddle to Stem Clamp Distance
- Why it matters: This distance determines how stretched out or upright you’ll feel on the bike. A longer reach is usually preferred for a more aggressive position, while a shorter reach works better for endurance and comfort.
- How we measure it: From the tip of the saddle to the centre of the stem clamp.
3. Stem Length
- Why it matters: The stem controls how far forward your handlebars sit and affects steering responsiveness. A shorter stem gives quicker, more responsive steering for technical control, while a longer stem provides smoother, more stable handling for high-speed riding.
- How we measure it: From the centre of the handlebar clamp to the centre of the steerer tube.
4. Standover Height
- Why it matters: The standover height determines how easily you can straddle the bike and affects confidence and control, especially when stopping or dismounting. A higher standover height suits taller riders but can be less forgiving, while a lower standover height improves accessibility and maneuverability, especially on technical terrain.
- How we measure it: From the top tube to the ground, measured at the midpoint of the top tube.
Benefits of getting the bike fit right
Getting these numbers dialed in ensures:
- Better comfort on long rides
- More power transfer for better efficiency and performance
- Less strain on your knees, back, and shoulders preventing injuries
- A balanced position for handling and control
Need help Finding the Right Fit for You?
At Gloria Cycling, we don’t just sell bikes - we help riders find their perfect fit. Whether you’re choosing a new Gloria titanium frame or adjusting an existing bike with our Titanium components, understanding these key measurements is the first step toward a better ride.

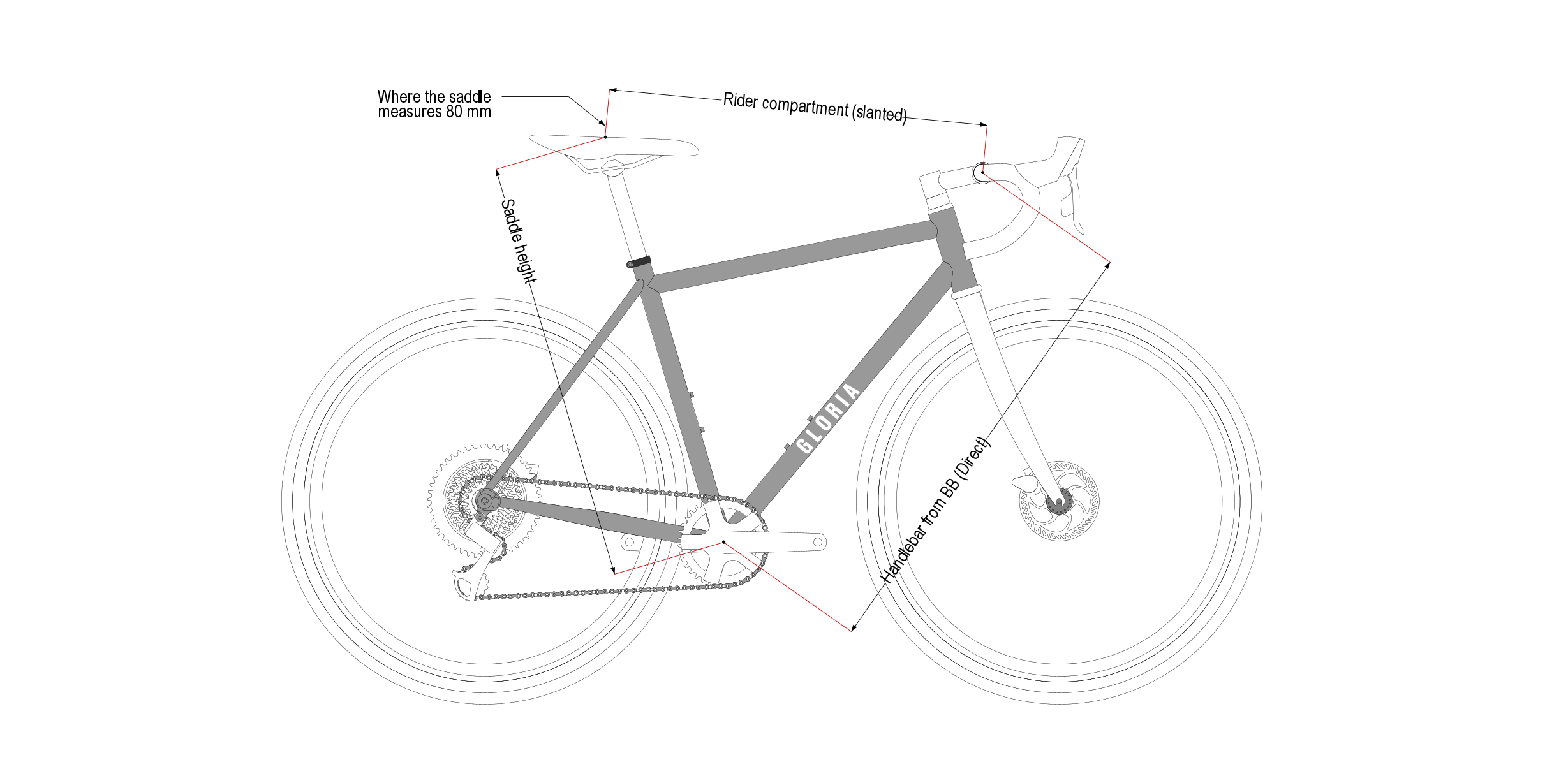

Key Measurments Diagram
Want to know more, Get In touch!
Looking for your perfect bike fit? Reach out to us, and let’s find your ideal setup!
